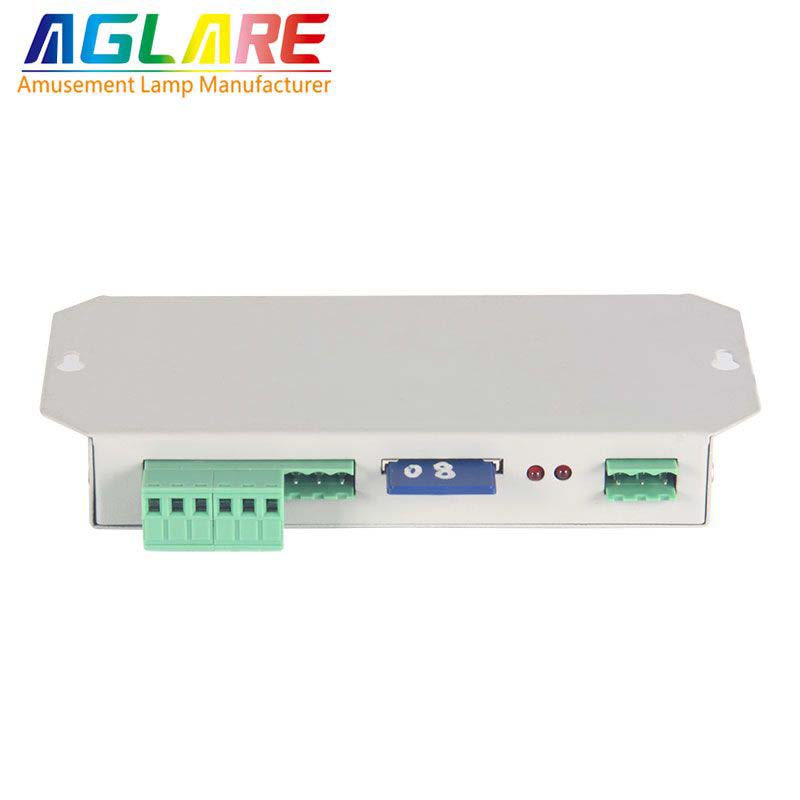

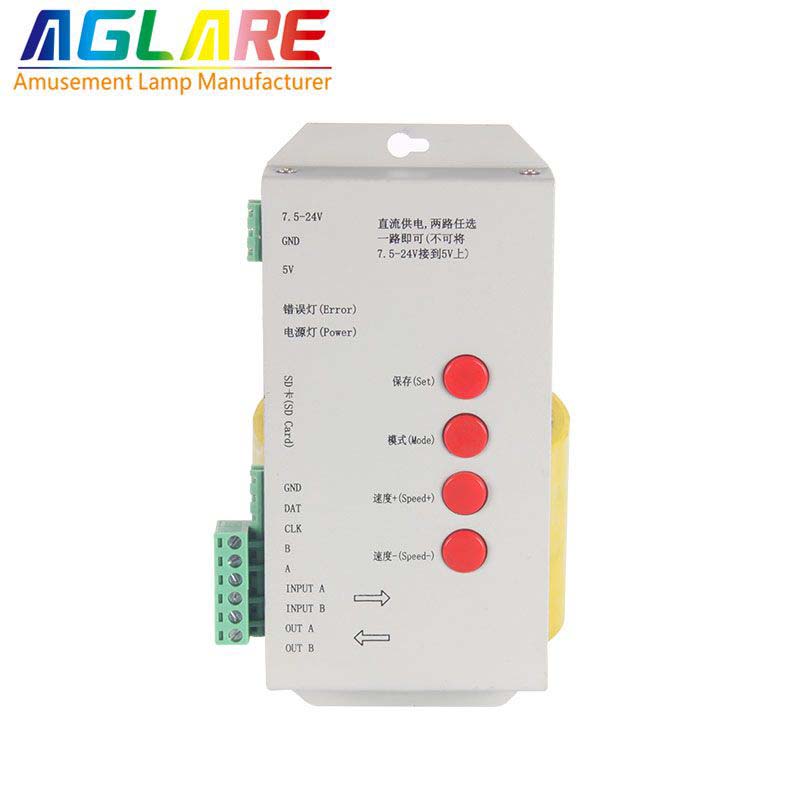

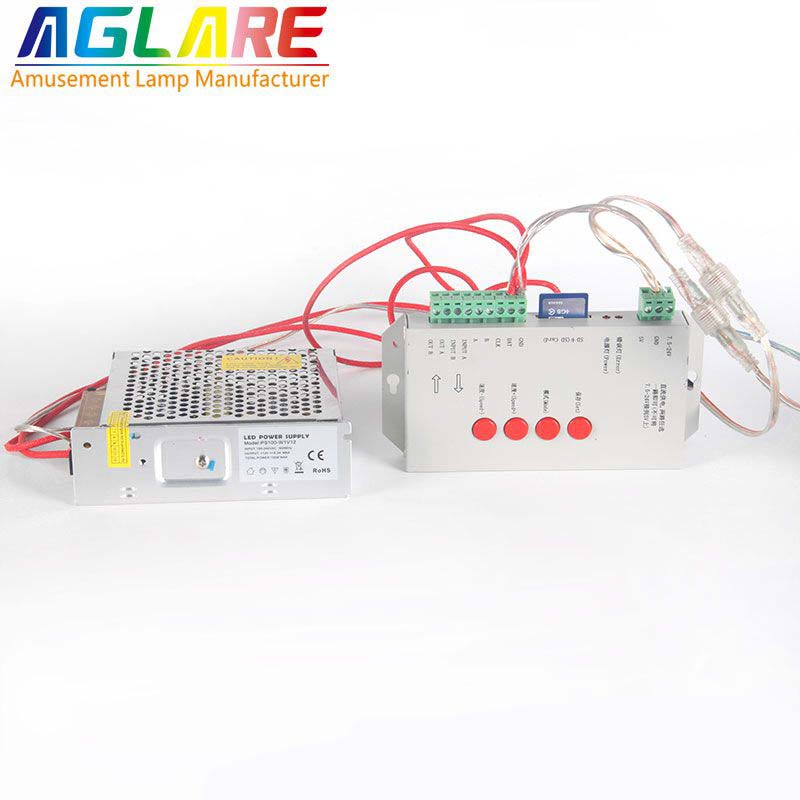

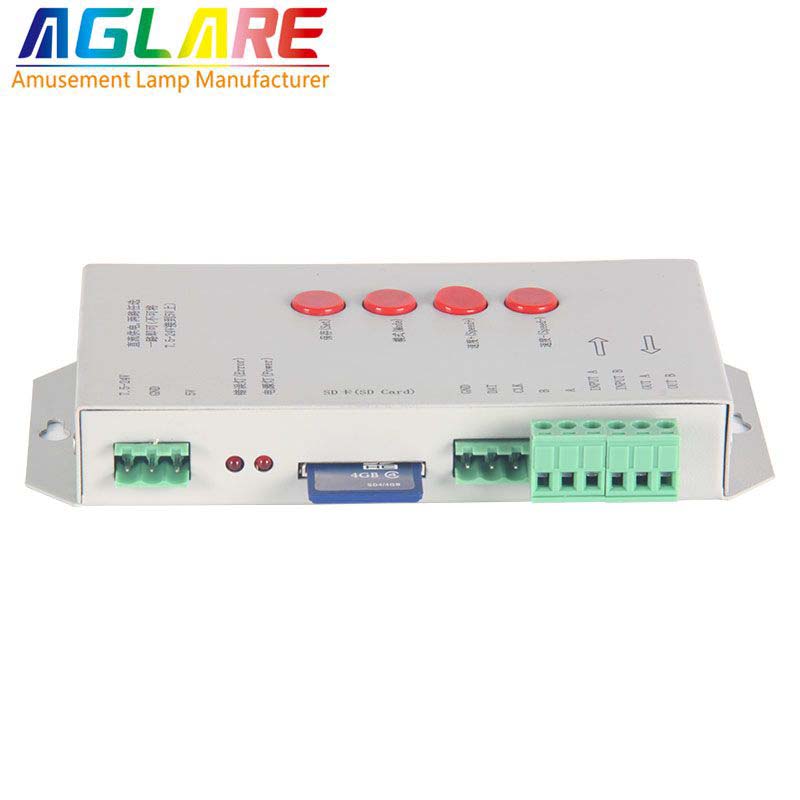

T-1000s programmable LED pixel light controller 2048 pixels SD control

Product model： T-1000s
Input voltage： 7.5-24v
Warranty： 1

compare inquiry

t-1000s rgb led controller

SPI / TTL / DMX online programmable LED controller, you can program by yourself to get custom LED effect, software is free of charge if you purchase controller.

Widely be used to control programmable LED strip, such as ws2801, ws2811/2812, LPD8806, etc; LED display to show animation.

LED T-1000S controller:

1>,32—256 Gray,Support software Gamma correction.

2>,Support the rules and special-shaped handle.

3>,Single-port output,can support 2048 lights.

4>,Off-line(SD Card) control, play back content stored in the SD card.

5>,T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,

after formatting the SD card as “FAT” format.

6>,The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.

7>,Compatible with single line or double line chips.

NOTE:1. When T-1000S controller less than 512 pixels the frame rate can reach 30fps. When T-1000S control more than 512 pixels the frame rate will slow down automatically.

Parameter

Chip type	Software code& Controller type	Lamps/(MAX)	Note
LPD6803,D705,1101,6909, 6912	T-1000-6803	8192 pixels
LPD8806,LPD8809	T-1000-8806	8192 pixels
TM1803,TM1804,TM1809,TM1812	T-1000-TM	8192 pixels	TM1804 and TM1809 are divided into high and low
TM1903,TM1904,TM1909,TM1912	T-1000-TM19	8192 pixels
UCS6909,UCS6912,UCS7009,UCS5903	T-1000-UCS-32	8192 pixels
UCS1903,UCS1909,UCS1912	T-1000-UCS-256	8192 pixels	1903 and 1909 are divided into high and low
UCS3903	T-1000-UCS-1024	8192 pixels
DMX512	T-1000-DMX	170 pixels(rgb)	Compatible with standard DMX512
WS2801,WS2803	T-1000-WS	8192 pixels
WS2811	T-1000-WS2811	8192 pixels	WS2811 be divided into high and low
DS189	T-1000-DS189	8192 pixels
TLS3001,TLS3002,TLS3008	T-1000-TLS	* pixels
P9813	T-1000-P9813	8192 pixels
SM16715	T-1000-SM16715	8192 pixels	SM16715 be divided into high and low
SM16716	T-1000-SM16716	8192 pixels
BS0901,BS0902	T-1000-0901	8192 pixels
BS0815	T-1000-0815	8192 pixels
