DC24V Auto program IP65 70mm Amusement rgb led pixel funfair light

  • Product model: YJLED-074A-S18RGB-WB-DC24V
  • LED type: 5050
  • Input voltage: DC24V
  • Lamp power: 1-3W
  • IP rating: IP65
  • Control mode: Controller control change
  • Luminous color (color temperature): RGB change color
  • Warranty: 1
  • LED chip brand: Sanan
  • Luminous angle: 240°

DC24V Auto program IP65 70mm Amusement rgb led pixel funfair light

Product Parameters

programmable rgb LED amusement puck light

Model NoYJLED-074A-S18RGB
Power1-3W
RGB:auto program
VoltageDC24V
Power Factor 0.9
Chip5050
CRI75
Color RGB
Beam Angle240°
IP Degree:IP65
LED quantity:18pcs
Working Temperature:25℃-45℃


Amusement LED Light YJLED-074A-S18RGB: This product is a new product of our company.Features:

1.Diameter 70mm

2.18pcs smd5050 RGB LED, RGB full color.

3.Clear PC Shell with excellent waterproof performance, UV-resistance and PCB board, connector cables.

4.Easy to install, better drill the hole about 21 - 22mm.

5.The light body is easy to replace after, without removing the aluminum groove, there is a classic decorative outer ring

6.Each lightcan be controlled individually.

7.Use of scenes: a variety of amusement equipment

8.Appearance: transparent shell, you can see the lamp beads inside, there are small circular patterns inside the shell, in the case of no light, but also very good-looking, the back of the light, is connected directly to the line by means of a metal pin.


RGB LED Fairground Light Product Structure:

YJLED-074A-rgb pixel auto programmed led amusement light.png

YJLED-074A-product material.jpg

Description for Programmable RGB LED Amusement Puck Light

At Aglare amusement lighting, we have provided supplies for fairground lighting projects of all shapes and sizes and lighting components including LED transformers, RGB flood light and e10 e14 fairground light.If you’re unsure whether we’ve supplied lighting for the project you have in mind before, just get in touch!

We can offer led rgb pixel amusement light,pixel led fairground light,cabochon lamps,cabochon pixel led light,cabochon ride light,smd 5050 rgb pixel light,rgb pixel light, led pixel programmable light, etc.

Aglare Amusement &Fairground light and Cabochon light products is widely used in Ferris Wheel Fairground led lights,Advertisement Outdoor Signboard Backlight,Stage Decoration Light,Stage Decoration Light,Kids Rides Decoration.Let's take a look at them.

Applications:

YJLED-073A-amusement Led Pixels Auto Program.jpg

YJLED-074A-product installation.jpg

YJLED-074A-product wiring diagram.jpg

NOTE:

1 The power of the lamp is max3W;input voltageDC24V

2 The main wire is recommended for each square MM maximum 10A current

3 Non overload use

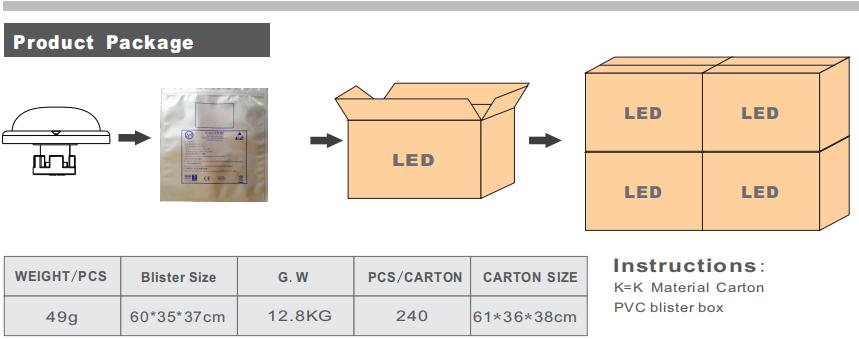

YJLED-074A-product package.jpg

Caution:

Please read the specification before used:

working temperature range -25°C-45°C

working voltage range less than +_10

Please turn off the power before installation

YJLED-074A-rgb pixel auto programmed led amusement light.png


Product Parameters

dv24V auto program IP65 70mm amusement rgb led pixel funfair light.jpg

Model NoYJLED-074A-S18RGB
Power1-3W
RGB:auto program
VoltageDC24V
Power Factor 0.9
Chip5050
CRI75
Color RGB
Beam Angle240°
IP Degree:IP65
LED quantity:18pcs
Working Temperature:25℃-45℃


YJLED-074A-product material.jpg


YJLED-073A-amusement Led Pixels Auto Program.jpg
