Amusement Lights

Cabochon DMX512 pixel led lights 60mm RGB 18LEDs DC24V for amusement rides lighting

  • Product model: YJLED-056-SN18RGB-WB-C10-DMX512
  • LED type: 5050
  • Input voltage: DC24V
  • Lamp power: 1-3.6W
  • IP rating: IP55
  • Control mode: Controller control change
  • Luminous color (color temperature): RGB change color
  • Warranty: 1
  • LED chip brand: Sanan

Cabochon DMX512 pixel led lights 60mm RGB 18LEDs DC24V for amusement rides lighting

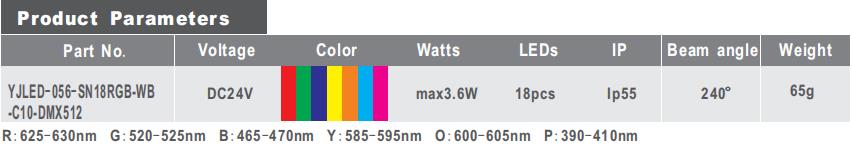

Product Parameters

cabochon dmx512 pixel led lights 60mm rgb 18leds dc24V for amusement rides lighting.jpg

Model NoYJLED-056-SN18RGB-WB-C10-DMX512
Power1-3.6W
RGBprogramme
Input VoltageDC24V
Power Factor 0.9
Chip5050 SMD
CRI75
Color RGB
Beam Angle240°
Diameter60mm
IP DegreeIP55
LED quantity18pcs
Working Temperature-25℃-45℃

YJLED-056-cabochon lights product parameters.jpg

YJLED-056-cabochon dmx512 pixel led lights.jpg

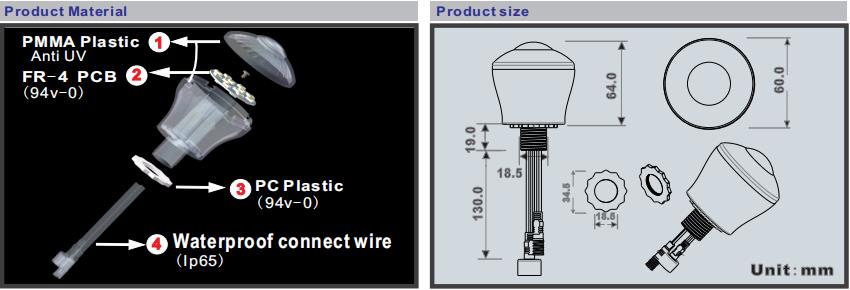

YJLED-056-cabochon lights product material.jpg

Product Description:

Cabochon 60mm DC24V DMX512 LED Amusement Lights DMX RGB Pixel LED is widely used in Amusement park lingting,Playground fair lighting,Ferris Wheel Fairground led lights,Advertisement Outdoor Signboard Backlight,Stage Decoration Light,Stage Decoration Light,Kids Rides Decoration.Aglare is a professional LED amusement lighting Manufacturers, Factory ,Suppliers From China.

We can offer led rgb pixel amusement light,pixel led fairground light,cabochon lamps,cabochon pixel led light,cabochon ride light,smd 5050 rgb pixel light,rgb pixel light, led pixel programmable light, etc.Let's take a look at them.

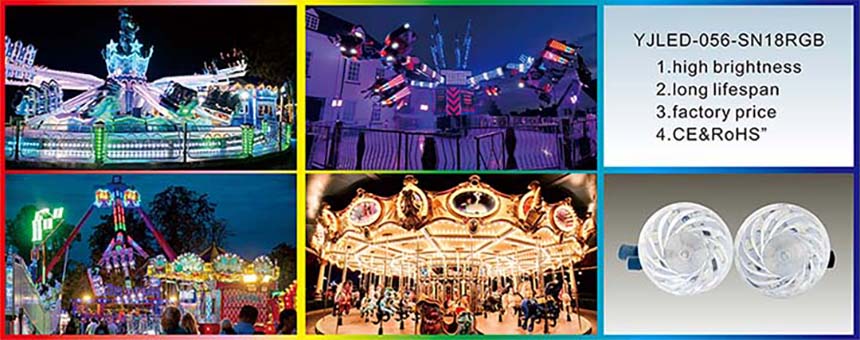

Applications:

Cabochon DMX512 pixel led lights 60mm RGB 18LEDs DC24V for amusement rides lighting.jpg

YJLED-056-cabochon lights product installation.jpg

YJLED-056-cabochon lights product wiring diagram.jpg

Note:

1 The power supply output is DC24y,>n*3.6W

2 We offer one power wire for bulbs for per 20 pixellamps

3 The main wire per spuare mm up to 10A current

5 The distance between the controller and theamp or the lamp and the lamp must be lessthan 5 meters,Otherwise you need to connect the signal amplifier

4 Please note that the signal line and high voltage line separation

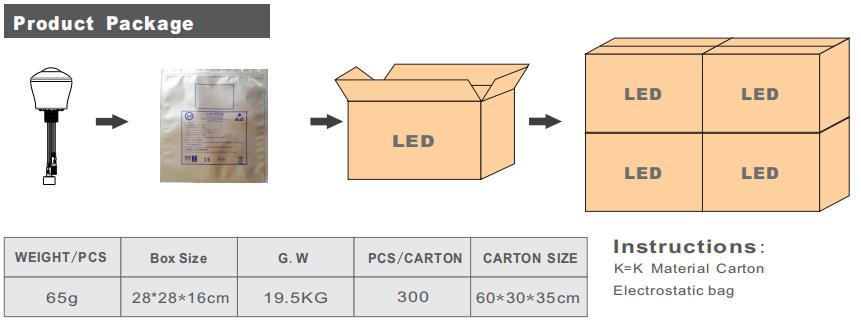

YJLED-056-cabochon lights product package.jpg

Caution:

Please read the specification before used:

working temperature range -25°C-45°C

working voltage range less than +_10

Please turn off the power before installation

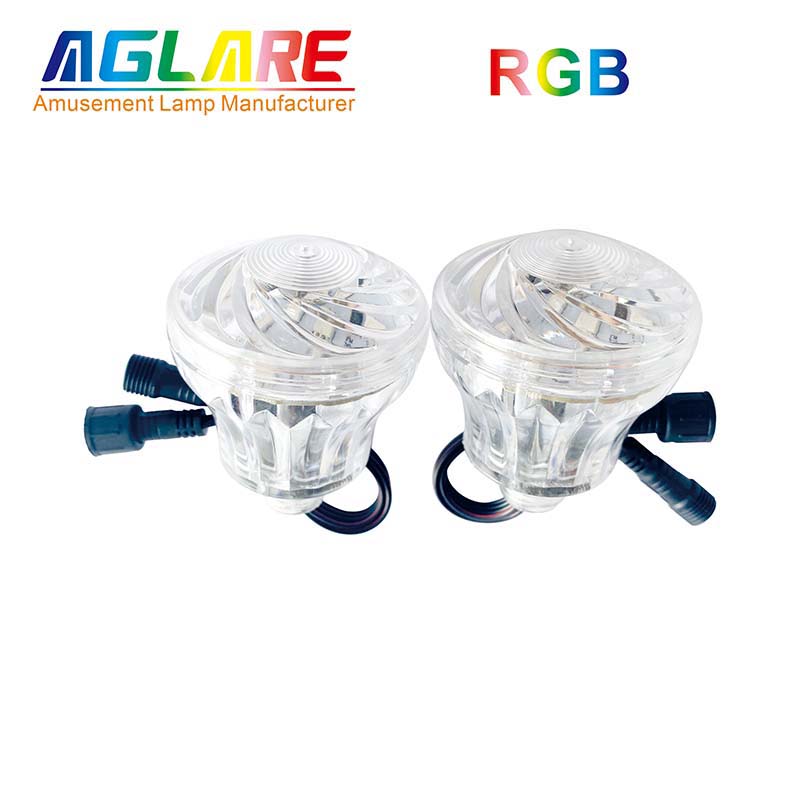

YJLED-056-cabochon dmx512 pixel led lights.jpg


Product Parameters

cabochon dmx512 pixel led lights 60mm rgb 18leds dc24V for amusement rides lighting.jpg

Model NoYJLED-056-SN18RGB-WB-C10-DMX512
Power1-3.6W
RGBprogramme
Input VoltageDC24V
Power Factor 0.9
Chip5050 SMD
CRI75
Color RGB
Beam Angle240°
Diameter60mm
IP DegreeIP55
LED quantity18pcs
Working Temperature-25℃-45℃



YJLED-056-cabochon lights product material.jpg

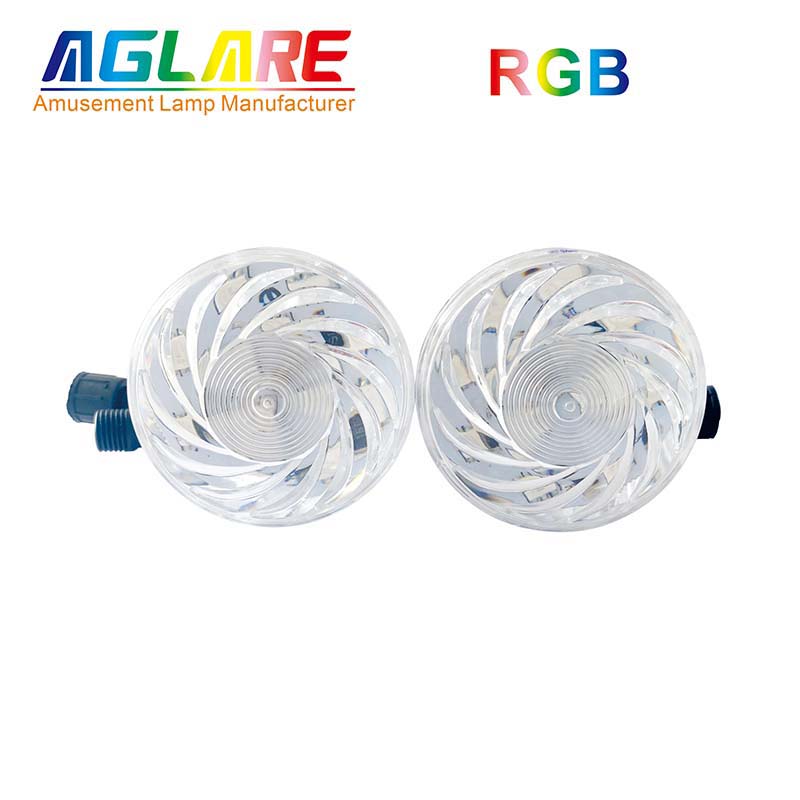

Cabochon DMX512 pixel led lights 60mm RGB 18LEDs DC24V for amusement rides lighting.jpg
