Creative Cylinder LED Screen Flexible Custom Of Sizes

Pixel Pitch(mm)： P1.5/P1.8/P2/ P2.5
Pixel Configuration： SMD
Cabinet Size： Custom Sizes
Input voltage： AC100-240V

compare inquiry

Creative Cylinder LED Display Pillar LED Screen - LED Display Manufacturer

Product Overview

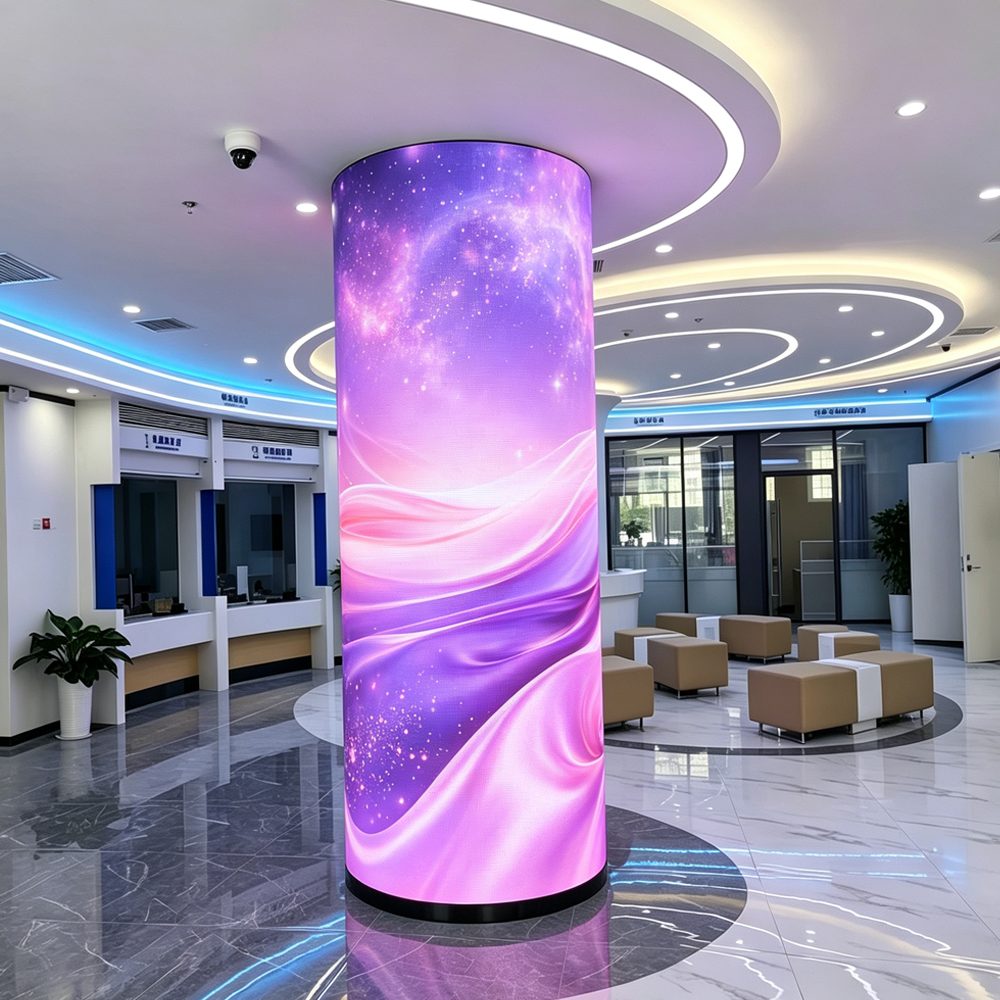

A cylindrical LED display, also called column LED screen, is a creative special‑shaped LED display tailored for pillar and cylindrical mounting scenarios. Indoor and outdoor variants are offered to adapt to various working environments.Aglare Lighting provide custom solutions tailored to your project’s size, resolution, and installation needs.

Product Parameters
	Pixel Pitch:	P1.25/P1.86(customizable)
	LED Type:	SMD 1515, SMD 2020 (depending on pixel pitch)
	Brightness:	800–2000 nits (adjustable based on environment)
	Pixel Pitch:	240mm x 120mm, 320mm x 160mm (custom sizes available)
	Lifespan:	100,000 hours (average)
	Input voltage:	AC110V ~ 240V
	Working Temperature:	-20°C to 60°C
	Control System:	Synchronous and Asynchronous Control (with Wi-Fi/4G support)
	Operating humidity:	10% ~ 90%
	Customization Options:	Custom shapes (tree,circles, arcs, triangles, hexagons, etc.)
	Installation:	Ceiling Mount, Wall Mount, Floor Mount (custom solutions)
	Source compatibility (with video processor) :	DVI/VGA,Video(multiple modes),RGBHV,composite Video Single,S-VIDEO,YPbPr(HDTV)

Product Features

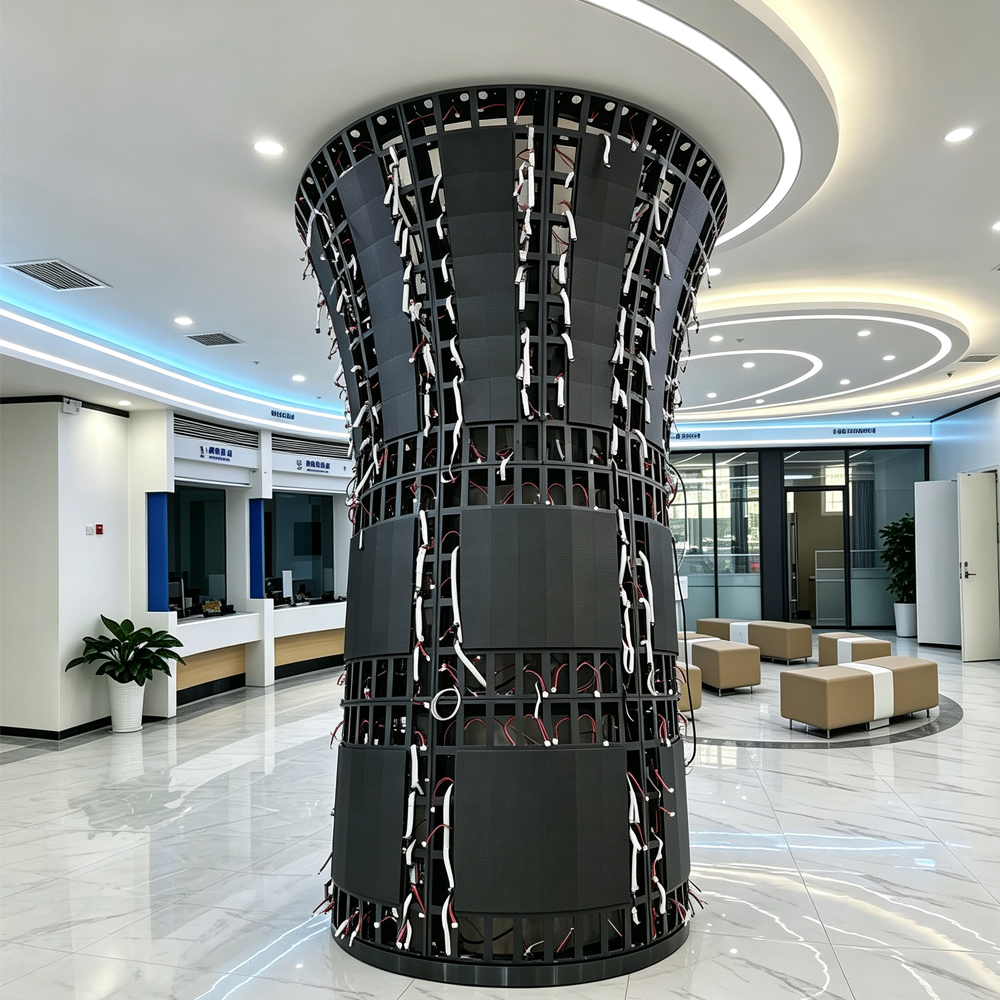

1.Flexible Curved Design: Built with bendable soft‑PCB boards, LED modules can perfectly wrap round, elliptical and irregular pillar structures. Available module dimensions: 250mm×250mm, 240×120mm, 256×128mm, 320×160mm.

2.Seamless Splicing Performance: Precision inter‑locking module structure eliminates dark lines and bright lines over the entire curved display surface for uniform visual output.

3.Durable High‑Grade PCB Material: Premium soft‑PCB material maintains stable performance even after being shaped into complex irregular curved profiles.

4.Convenient Front‑Service Maintenance: Front‑access design enables technicians to swap defective modules quickly, no rear‑side operating space required for on‑site repair.

5.360° All‑round Viewing: Consistent image performance from every perspective, free of viewing blind spots and image distortion.

6.Full OEM & ODM Customization: Abundant pixel pitch and module size options to satisfy different resolution standards and project‑specific demands.

7.Diverse Installation Solutions: Supports ceiling‑mounted, wall‑mounted and floor‑standing configurations. Please inform us of your preferred mounting method during your project inquiry.

Product Application:

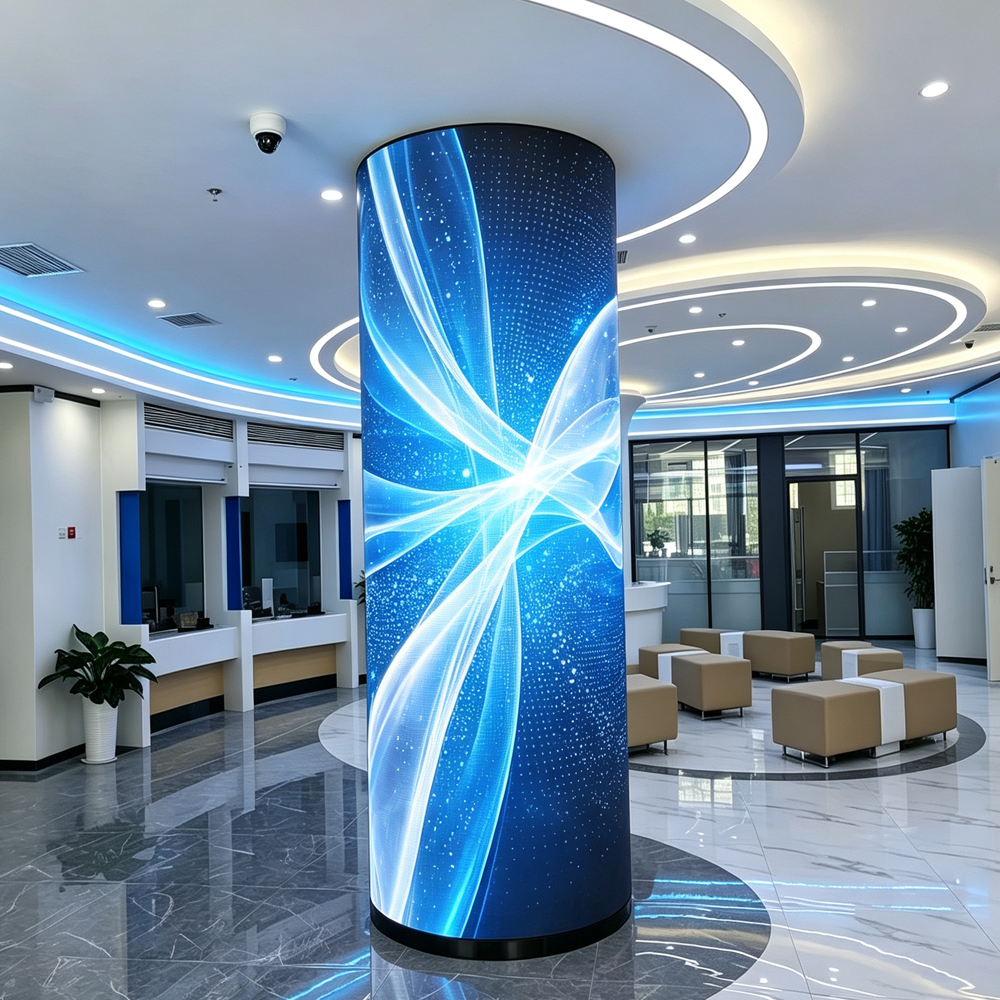

Creative column cylinder LED screens turn ordinary building pillars into striking digital display carriers. Instead of concealing architectural structures, they integrate display media with building outlines to create unique spatial visual highlights.

Indoor application scenarios cover shopping‑mall atriums, hotel lobbies, metro stations, hospital public zones, retail chain stores and museum exhibition halls. For outdoor projects, they fit city plazas, theme parks, stadium peripherals and large‑scale transit hubs. With outstanding curved wrapping capacity and stable display quality, they realize perfect fusion between LED display and architectural decoration.

FAQs

Q1: What pillar shapes can the cylinder LED screen wrap around?

A: Our flexible soft‑PCB modules adapt to round, elliptical and many irregular pillar profiles. You may provide pillar diameter and shape parameters, and our engineering team will work out a feasible splicing solution.

Q2: Does the column cylinder LED screen support front‑side maintenance?

A: Yes. It adopts front‑service structure. Technicians can replace faulty modules from the front side, without reserving back‑end operation space, lowering site‑condition requirements greatly.

Q3: Can cylindrical LED displays be deployed outdoors?

A: We supply both indoor and outdoor versions. Outdoor models adopt waterproof‑treated modules and protective structures, suitable for plazas, parks, stadiums and other open‑air locations. Kindly specify indoor or outdoor usage in your inquiry.

Q4: Will curved cylindrical LED screens produce image distortion?

A: Thanks for precise module splicing and supporting image correction software, the screen delivers stable 360‑degree viewing effect with minimal distortion and no obvious viewing dead zones.

Q5: What parameters can be customized for column cylinder LED projects?

A: Customizable items include cylinder diameter, pixel pitch, module size, installation type and indoor/outdoor grade. We provide professional OEM & ODM services to match your actual site conditions and design requirements.

Choose Aglare LED Screen Manufacturer To Customize Your Exclusive LED Solution

Rely on Aglare Lighting as your trusted supplier for custom column cylinder LED display projects. We possess rich practical experience in architecture‑integrated special‑shape LED display solutions.

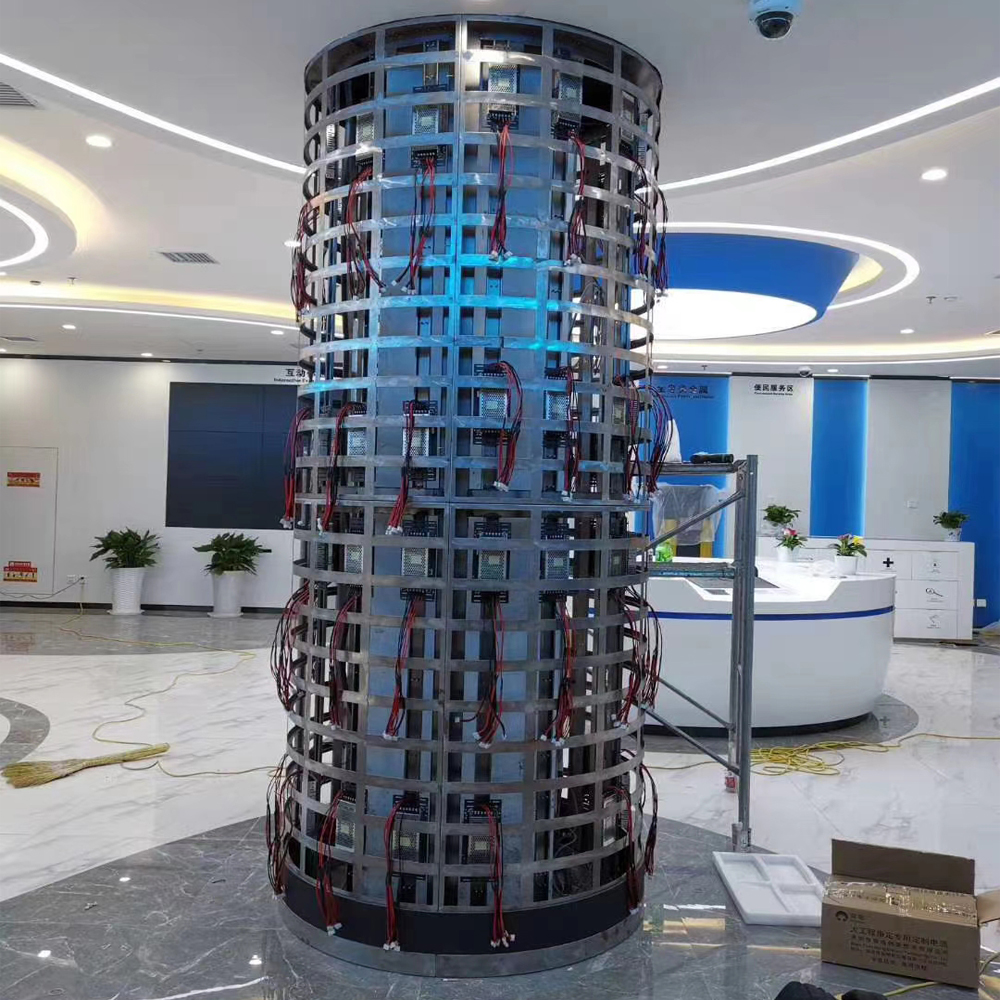

Starting from site analysis, structural frame design and flexible‑module production all the way to installation guidance and commissioning, we deliver full‑process turn‑key services. Our technical team optimizes radian matching, splicing accuracy and image correction, balancing artistic appearance and long‑term operational stability.
